ASRock Z690 Pro RS D4
1
POLYRGBLED Z690 Pro RS mobile
10498 mainboard asrock z690 pro rs 5

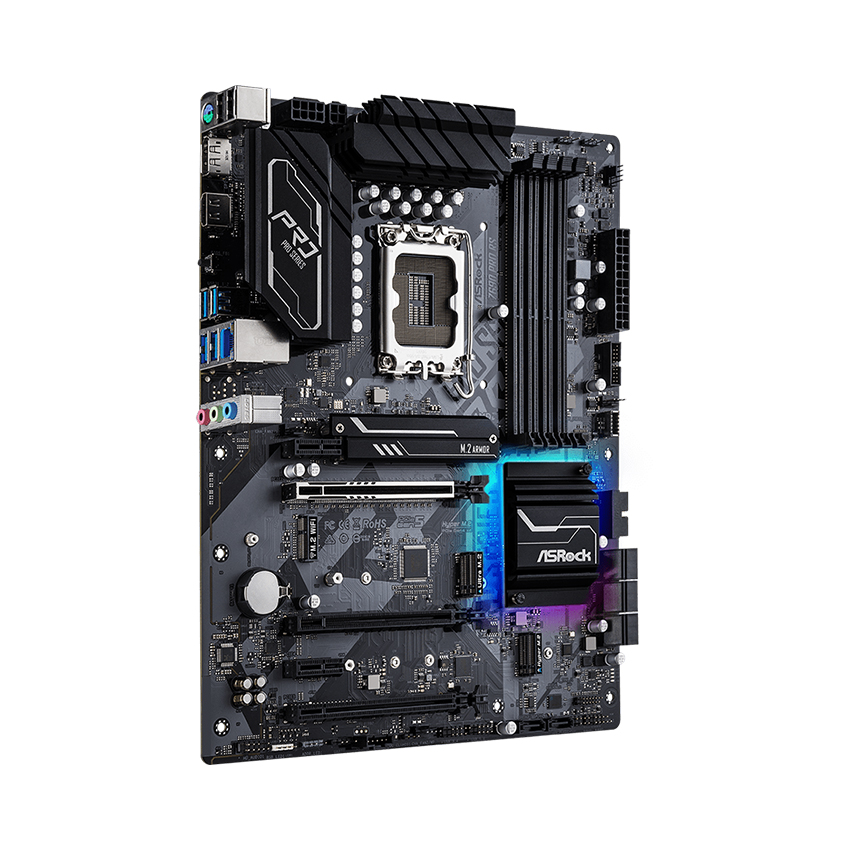

Mainboard ASRock Z690 Pro RS D4 New

4.300.000 ₫

Thông số kỹ thuật

☑️Model: Z690 Pro RS
☑️Socket: LGA1700 hỗ trợ CPU intel thế hệ 12
☑️Kích thước: ATX
☑️Khe cắm RAM: 4 khe, tối đa 128GB
☑️Khe cắm mở rộng: 3 x PCIe x16 Slots, 2 x PCIe Gen3x1 Slots, 1 x M.2 Socket
☑️Khe cắm ổ cứng: 8 x SATA3 6.0 Gb/s, Hyper M.2, 1 x Ultra M.2

Bảo hành 36 tháng

Giảm giá!

Thông số kỹ thuật Mainboard ASRock Z690 Pro RS

CPU – Supports 12th Gen Intel® Core™ Processors (LGA1700)
– Digi Power design
– 13 Power Phase design
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset – Intel® Z690
Memory  Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 128GB
– Supports Intel® Extreme Memory Profile (XMP) 2.0
BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics – Intel® Xe Graphics Architecture (Gen 12)
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
– Nahimic Audio
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots – 3 x PCIe x16 Slots (PCIE2/PCIE3/PCIE5: single at Gen5x16 (PCIE2); dual at Gen5x16 (PCIE2) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))*
– 2 x PCIe Gen3x1 Slots
– Supports AMD Quad CrossFireX™ and CrossFireX™
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Storage – 8 x SATA3 6.0 Gb/s Connectors*
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode**
– 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes**
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode**
RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector – 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Rear Panel I/O – 3 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installer
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 4 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
– 1 x Graphics Card Holder
Hardware Monitor – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Voltage monitoring: CPU Vcore, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +1.05V PCH, +0.82V PCH, +12V, +5V, +3.3V
Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– Solid Capacitor design
– 2oz Copper PCB

Z690%20Pro%20RS(L2)

Z690%20Pro%20RS(L4)

Z690%20Pro%20RS(L6)

Z690%20Pro%20RS(L7)
